Gateways & SIM servers
GSM, 3G, CDMA, SMS, VOIP gateways
MainCatalogHome office Ingate 2M8S

DTT Ingate 2M8S GSM-FXS gateway. 2 GSM channel, 4 Sim per channel

Print
Ingate 2M8S
Other photos
  • Ingate 2M8S
  • Ingate 2M8S
  • Ingate 2M8S
Main characteristics
SKU 1029
Vendor DTT
Category Home office
Standart GSM/900/1800/850/1900 - FXS/FXO
Frequency 850/900/1800/1900 MHz quad-band or dual
System output 1W
Display Lcd
SMS(MMS) yes
Antenna 2
Q'ty of channels 2
Q'ty SIM per channel 4
Connectors Com, RJ-45
Datacom GPRS or CDS, 9600-115200 bit/sec
Interface FXS, RS-232
Management Dial tone, API
IMEI changing Yes
Dimensions, HWD 11x3,5x18 cm
Weight 0.4 kg
Shipment Worldwide
Price 600 $
Others currency 543 ˆ
In stock
Wire Transfer VISA MasterCard PayPal

Interface

FXS Caller ID identification

Main
Power Supply 12V DC
Power Input Max 0.3 AMP

Other

Dimensions 90 x 110 x 30 mm
Weight 285 g ( net )

Operating Temperature +20 to +50 °C
Relative Humidity Max 95% at +40 °C

GSM Parameters
GSM channels 1 Channel
Network types 850 / 900 / 1800 / 1900 MHz quad-band or dual band
(Depending on GSM engine)
GSM engine Wavecom ( P5186 )
Transmitter Power +33 dBm ( 2W ) 850 / 900 MHz or +30 dBm
( 1W ) 1800 / 1900 MHz
SIM Card 1 SIMs per channel, Small Plug in, 3V
Antenna Connector SMA ( female ) Impedance 50Ω

DATA Interface
DATA RS232 (GPRS or CDS)
Connector RJ-45 (female)
Transmission Rate 9600-115200 bit/sec, autobauding

CDMA Parameters
CDMA channels 2
Network types 800/1900 MHz
CDMA engine Wavecom (Q2438)

Administration

Includes version update capabilities for firmware or management Software
Programming: DTMF
Gain Control
CLIP / CLIR


DTT Ingate 2M4S

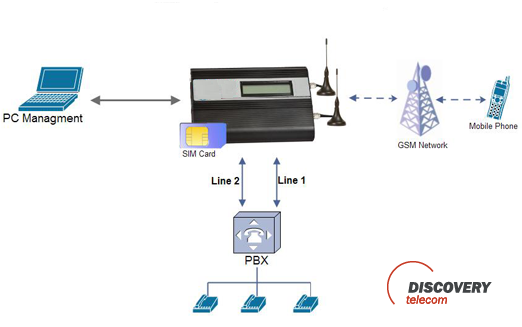

- 2 Channel FCT - 4 SIMs per channel (GSM version only) This solution offers SOHOs and medium scale business to connect PSTN to GSM utilizing call routing through a predefined terminal using tested Least Cost Routing (LCR) software, making the necessary call in the least expensive way possible. In addition, the 2 Channel FCT offers:
Two simultaneous calls to any two cellular operators
Intelligent LCR Least Cost Routing with up to 4 cellular networks
LCR is programmable by prefix, time-table, day, hours to call, number of calls
Each SIM has up to 32 Prefixes, user may specify tariff for each
Windows based powerful management system
All programming and monitoring done via PC and view on LCD
LCD shows network, signal strength, call status and programming
